FR-F7 指纹安全系统终端

Verification Method:Fingerprint password or any combination
Embedded Linux OS
Fingerprint capacity:1500;
capacity:30000
Communication:TCP/IP, RS232/485
Access control interface for 3rd party electric lock,door sensor,exit button,alarm,door bell
Wiegand output
Dimension：180*82*55mm
Gross weight: 1.5kg

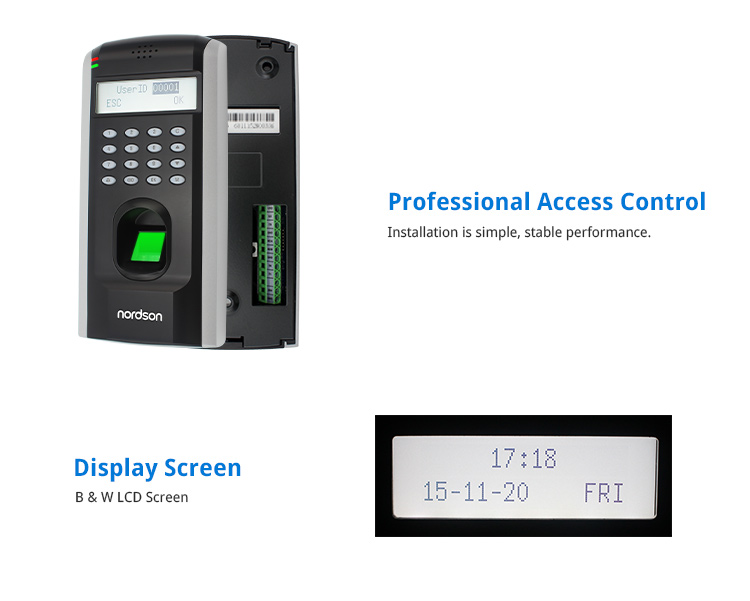

FR-F7 fingerprint security system terminal, quickly and accurately read the fingerprint data, high image quality optical fingerprint reader can be installed independently, can also be combined with the use of the control panel Wiegand 26 protocol, performance is quite stable. Via TCP / IP and RS232 / 485 communication protocols used in different networks via TCP / IP protocol so that data easily within a few seconds of transmission between the machine and computer.
1.1500 fingerprint templates stored and 30,000 data
2.standard access control functions
3.built-in serial port can be used with third-party control panels use
4.built-WG output port can be connected to third-party control panels
5.built-in SD card allows for manual data transfer
6, language Tones
7.anti demolitions and alarm functions

Fingerprint Capacity	1500
Record Capacity	30000
Display	B & W LCD Screen
Communication	TCP/IP,RS232/485
Standard Functions	Work code, SMS, DST, Scheduled-bell, Self Service Query, Automatic Status Switch, T9 input, and photo-ID
Optional Functions	Webserver, 9 digit user ID, and Wi-Fi, ADMS
Access Control	3rd party electric lock, door sensor, exit button, alarm, DoorBell
Power Supply	DC 12V
Verification Speed	≤0.5 sec
Operating Temp.	0°C- 45°C
Operating Humidity	20%-80%
Dimension	1808255mm(Length×Width×Thickness)
Gross Weight	0.65kg
