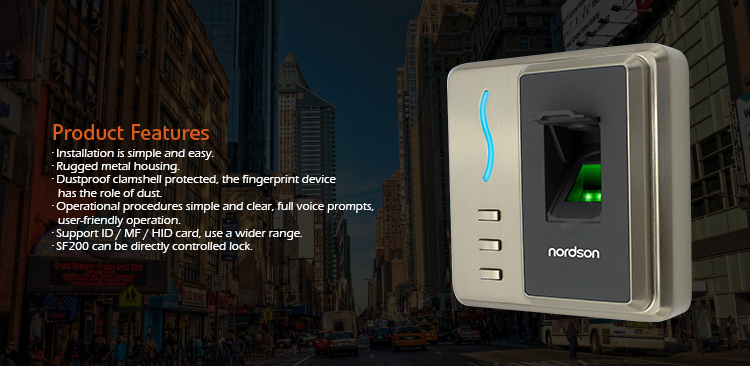

FR-SF200 Metal Network Fingerprint Access Control & Time Attendance, for single door entrance, with RFID card reader function, easy to install, easy to use, stable performance. Support Wiegand output to connect with control panel.FR-SF200 with international standard 86 bottom box quick installation,Built-in data memory, quickly identify finger, with short circuit protection, safety interference, to meet a variety of automated office space, industrial and mining enterprises, government agencies, intelligence community, telecom base stations, and other public access entrance access control system application demand.

1.Metallic Casing
2.Elegant fingerprint sensor
3.International standard 86 bottom box,Easy installation, safe and reliable
4.Wiegand out to connect with control panel
5.The cover protect the fingerprint sensor from dust and water
6.Simple and convenient operation method with full audio prompt
7.ID card standard, IC 13.56HZ card optional
8.Full door lock control system
9.Audio prompt guide the user to operate

Type	FR-SF200 Metal Network Fingerprint Access Control & Time Attendance
Fingerprint Capacity	200
RFID Card	100 EM(125 KHz)
Record Capacity	30,000
Communication	RS232/485,USB-Host
Full Access Control Features	Access control interface for electric lock, door sensor, exit button, alarm and doorbell
Optional Functions	Mifare(optional)
Wiegand Signal	Output
Authentication	Finger / Card
Power Supply	DC 12V
Verification Speed	≤0.5 sec
Operating Temp.	-10 °C~50 °C (14°F ~ 122°F)
Operating Humidity	20%-80%
Dimension	120mm×120mm×35mm (W×H×D)
Gross Weight	1.25kg
