NT-120 金属RFID门禁

EM-Marin Card format /125KHz)
Support up 500 users/1000 cards/4 digit PIN Code
2n relay outputs,Metal keyboard
Operating Voltage: 12VDC
Current Drain: <90mA

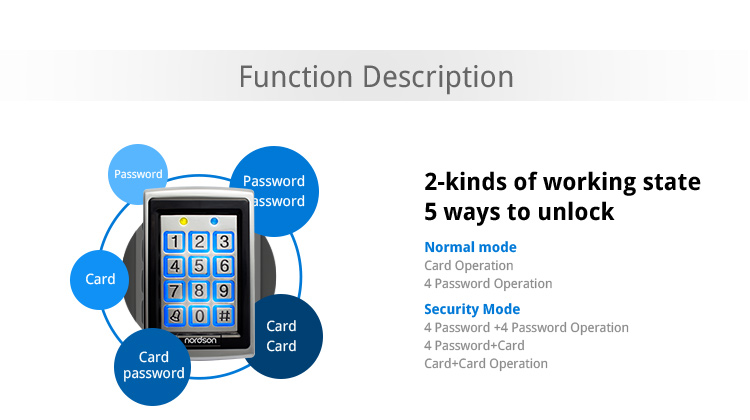

2-kinds of working state:Secure/Normal,
4-Operation Mode:
4 number code Operation;
4 number code +4 number code Operation;
4 number code+Card;
Card+Card Operation.
With Lock relay output,NO/NC output.With the function of alarm.
Can be Connected with Door-open Button and Doorbell
Programming through keypad
Dimension:120*76*27mm
Gross Weight: 0.40kg

NT-120 Waterproof Metal Access Control, for single door entrance, with card reader and keyboard input in one function, easy to install, easy to use, stable performance, built-in data storage, quickly identify proximity readers with short circuit protection, safety interference, to meet a variety of automated office space, industrial and mining enterprises, government agencies, intelligence community, telecom base stations, and other public access entrance access control system applications.
1.completely independent access control, can directly implement user passwords, card management and other functions
2.keyboard input, support card, password, card plus password, password + password to open the door in four
3.supports two modes of operation, normal mode and safe mode
4.supports three user levels 1. Ordinary users 2. Security User 3. Advanced users
5.reader sensor with high sensitivity, less than 0.1 seconds
6.supports a password to open the door, stand-alone card capacity up to 500
7.high-quality nickel alloy metal material, having a tamper alarm and door sensor alarm functions
8.exit button and doorbell input function
9.the surge absorption protection

Verification Method	4-Operation Mode: 4 number code Operation(Support 500 users),4 number code +4 number code Operation,4 number code+Card , Card+Card Operation
keyboard	Metal buttons with luminous
Capacity Of Cards	500 Users
Door Open Time	0-99 seconds
Proximity Range	3－15CM
Frequency	EM-ID 125KHz or 13.56MHz
Voltage	DC 12V
Current Drain	<90mA
Access Control Interface	Electric lock, Door sensor, Exit button, alarm, DoorBell
Relay output	2n relay outputs
Operating Temperature	0°C - 45°C
Operating Humidity	20%-80%
Dimensions	120Lx76Dx27W(mm)
Gross Weight	0.41kg
