FR-M3 网络指纹门禁终端

Fingerprint capacity: 1000
Card capacity: 1000
Storage capacity: 100000
Scanner: High precision total reflection optic scanner
Display: 2.8inch HD LCD screen
Communication ways: U disk, USB, RS485, TCP/IP
Recognition ways: 1:N 1:1
Language: Chinese (Simplified / traditional) , English, Korean
Alarm Function: Intimidation alarm, tamper alarm, forced door-opening alarm, door-opening overtime alarm, entrance point alarm
Identification way: Fingerprint, ID card, password
Door open button: Normal button and wireless remote control
Working voltage: 12V/1A
Suggestion of installing distance: 140-150cm
Lock output: NO/NC
Size: 199x84x44mm

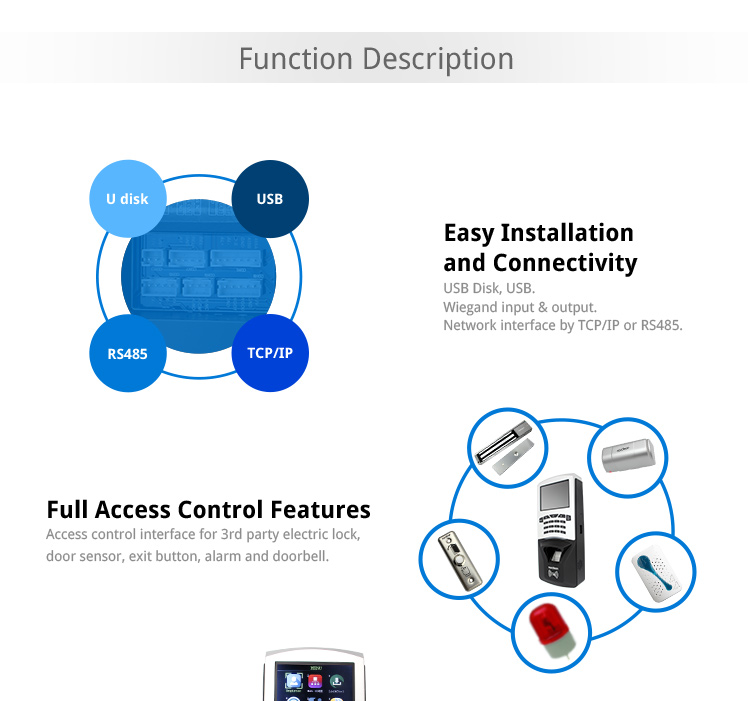

FR-M3 Network Fingerprint access control terminal, quickly and accurately read the fingerprint data, high image quality optical fingerprint reader can be installed independently, can also be combined with the use of the control panel Wiegand 26 protocol, performance is quite stable. Via TCP / IP and RS232 / 485 communication protocols used in different networks via TCP / IP protocol so that data easily within a few seconds of transmission between the machine and computer.
1.1000 fingerprint templates stored and 100,000 data
2.standard access control functions
3.built-in serial port can be used with third-party control panels use
4.built-WG output port can be connected to third-party control panels
5.Support multiple languages,English(Simplified / traditional) , Chinese, Korean
6.anti demolitions and alarm functions

Fingerprint Capacity	1000
ID Card Capacity	1000
Record Capacity	100000
Display	2.8inch HD LCD screen
Communication	U disk, USB, RS485, TCP/IP
Scanner	High precision total reflection optic scanner
Suggestion of installing distance	140-150cm
High precision total reflection optic scanner	1:N 1:1
Alarm Function	Intimidation alarm, tamper alarm, forced door-opening alarm, door-opening overtime alarm, entrance point alarm
Standard Functions	Access control interface for 3rd party electric lock,door sensor,exit button,alarm
Optional Functions	ID/Mifare/HID, Webserver, 9 digit user ID, and Wi-Fi, ADMS
Power Supply	DC 12V
Verification Speed	≤0.5 sec
Operating Temp.	0°C- 45°C
Operating Humidity	20%-80%
Dimension	1998444mm(Length×Width×Thickness)
Gross Weight	0.65kg
