NI-100F 电插死锁

Fail-safe type: Power to lock
Face Plate: 205L*35W*40H(mm)
Strike Plate : 90L*25W*2H(mm)
Bolt: 16mm (Throw) * 16mm(Diameter)
Fail Safe:Power to lock
Voltage: DC12V
Start Current: 960mA Standby Current: 130mA
Signal Output: door open or door close state detection output point,NC/COM
Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.

Timer: 0/3/6/9 seconds available to set
Face Place Material：High Aluminum,Carrulous Line Finished
Weight: 0.65kg

NI-100F is deadbolt lock with door & lock status dual signal output and delay function, which is fail safe electric bolt lock that suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low temperature design, which makes access safer and durable.
1. with door & lock status dual signal output and delay function, Optical control techniques to prevent mechanical failure
2. Ultra-low temperature design, less heat,safer and more durable
A.Momentary current conversion
B. electric bolt will start scouting lowpower consumption and low temperature conversion while Door position is not correct or with stands bolt
C. Photoelectric technology, reduce mechanical failure
3.Ultra-low-power design, energy saving
4. 500,000 times successful test
5. Built-in reverse current preventing equipment.
6. Intelligent single-chip configuration,level three current applications
7. High-strength aluminum alloy lock body,stainless steel lock head
8. Product specification is complete for all types of door installation
9. CE, ROHS & MA certificates

Fixing	Embedded-mounted(vertical and horizontal)
Version	Fail-unlocked
Standard Functions	Low Temperature,Door Status Sensors,Relock Delay Timer
Door Status Sensors	Dry contact NC,COM
Lock Status Sensors	Dry contact NC,NO,COM
Push Button Contact	Door Open Push Button Input Contact
Relock Delay Timer	Relock Delay Timer
Optional Functions	Buzzer
Diameter dead bolt	ø16mm,16mm
Shear strength	2000Lbs/800kg
Rated Operating Voltage	DC 12V or 24V (Customization Available)
Start Current	960mA
Standby Current	130mA
Face place material	High Aluminum
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C
Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal door

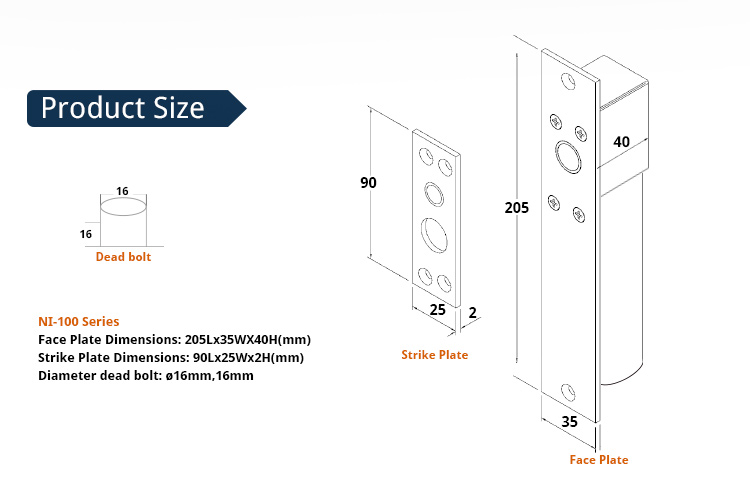

Face Plate Dimensions(L x W x D)	205Lx35WX40H(mm)
Strike Plate Dimensions(L x W x D)	90Lx25Wx2H(mm)
Weight	0.72kg
CE Certificat	YES
Rohs Certificat	YES
