NI-405 Narrow frame Micro Dead Bolt Lock with Cylinder, coming with mechanical emergency lock, suit for narrow-framed wooden doors, metal doors, fire doors,glass doors. Lock body are made of 304ss high hardness, corrosion resistant stainless steel, all solid lock withstand 4500 pounds linear positive impact, Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving. Attached accessories for frameless glass door and narrow panel door.
Home >
Products >
电锁装置 >
坚固型电插锁(支持钥匙解锁) >
NI-405 微型死锁(带钥匙)
NI-405 微型死锁(带钥匙)
Fail-secure&Fail-safe (adjustable)all purpose type) small capacity
Door position detection and bolt position (N.C. & N.O.) output points
Power Supply: DC12V; Operation current : 880mA; Holding current: 250mA;
Face Plate: 205L*30W*38H(mm)
Strike Plate : 100L*25W*3W(mm)

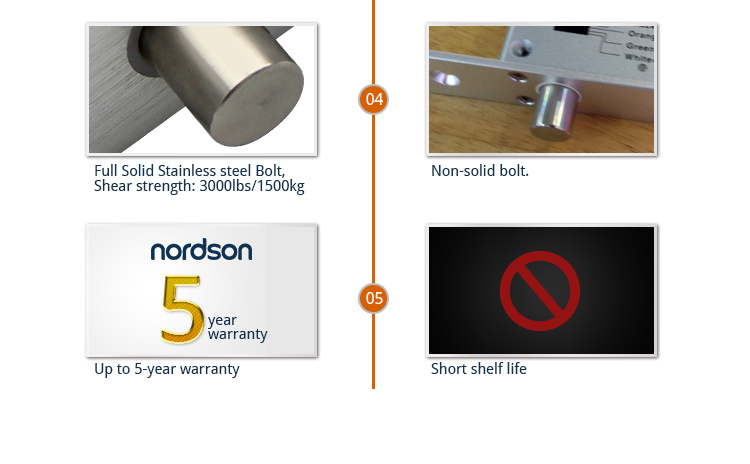

Bolt :13mm DIA,stainless steel 16mm throw
Adjustable fail-safe (power to lock) or fail-secure (power to open).Adjustable to fail-secure (power to open) for high security places.
Adjustable to fail-safe (power to lock) for public places.N.C and N.O output points.
Suitable for 180°door.Adjustable to fail-secure (power to open) to achieve long unlock state function.
Weight: 1.1kg
Door position detection and bolt position (N.C. & N.O.) output points
Power Supply: DC12V; Operation current : 880mA; Holding current: 250mA;
Face Plate: 205L*30W*38H(mm)
Strike Plate : 100L*25W*3W(mm)
Bolt :13mm DIA,stainless steel 16mm throw
Adjustable fail-safe (power to lock) or fail-secure (power to open).Adjustable to fail-secure (power to open) for high security places.
Adjustable to fail-safe (power to lock) for public places.N.C and N.O output points.
Suitable for 180°door.Adjustable to fail-secure (power to open) to achieve long unlock state function.
Weight: 1.1kg
