首页 > 产品 > 电锁装置 > 表面安装型电锁口 > NJ-360A表面贴装电锁口

Home > Products > 电锁装置 > 表面安装型电锁口 > NJ-360A表面贴装电锁口

NJ-360A表面贴装电锁口

Fail-secure type (Power to open)
Lock Size:138L*32W*39H(mm)
Holding Stength: 800kg
Bolt Structure: Stainless Steel
Voltage: 12VDC
Current: 120mA(NJ-360A) / 240mA(NJ-360B)
Weight: 0.6kg

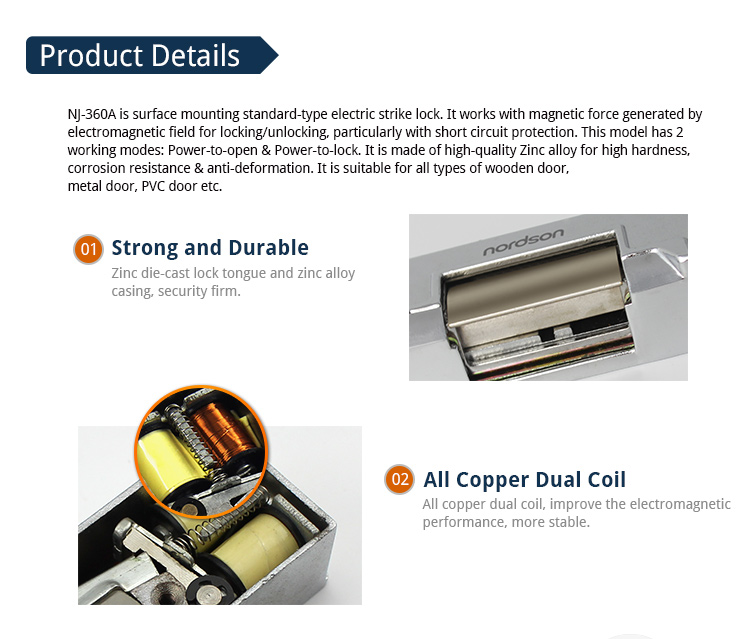

NJ-360A is surface mounting standard-type electric strike lock.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality Zinc alloy for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.
1.Pass 1000lbs super linear static thrust test
2.Mode option::Fail-locked/Fail-unlocked
3.Suitable for all standard-type doors with adjustable tongue distance
4.Built-out MOV
5.Direct installation on metal door frame with mounting hole
6.Pass test of high temperature aging 100,000 times
7.Made of high-quality Zinc alloy for high hardness,corrosion resistance & anti-deformation
8.CE Certificate & MA Certificate approved

Version	NJ-360A:Fail-locked(the strike is locked when the current is off) NJ-360B:Fail-unlocked(the strike is unlocked when the current is off)
Shear strength	1000Lbs(500kg)
Lock Status Sensors	NO
Rated Operating Voltage	DC 12V
Standby Current	240mA
Optional Functions	Lock Status Sensors
Face place material	High Zinc alloy
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C
Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal door
Strike Plate Dimensions(L x W x D)	138L39W28H(mm)
Strike mouth Dimensions(L x W x D)	45L17W13H(mm)
Weight in kg	0.6kg
CE-mark for building	YES
Rohs-mark for building	YES
